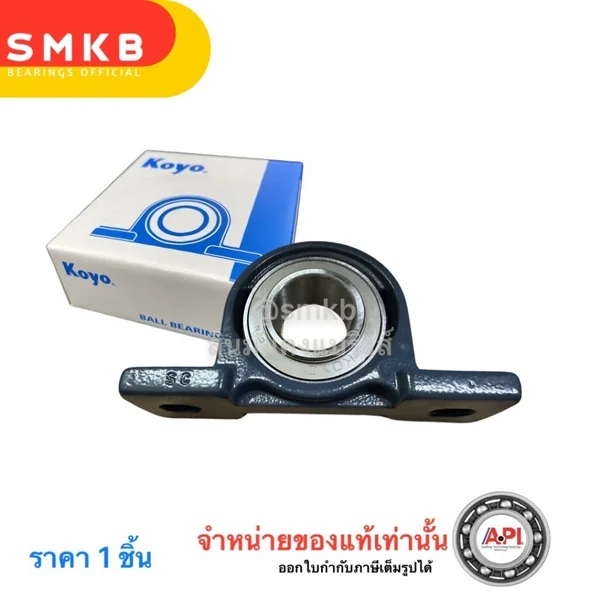

UKP ตลับลูกปืนตุ๊กตา Bearing Units UKP209 45 มม. ใช้กับ Adapter Sleeve H, HE KOYO BRAND

ตลับลูกปืนตุ๊กตา Bearing Units UKP205 UKP206 UKP207 UKP208 UKP209 UKP210 UKP211 UKP212 ใช้กับ Adapter Sleeve H, HE


UKP209
Product information
Back to product search
Print layout
Ball bearing units - Pillow block type - Adapter locking

Specifications
(Boundary dimensions ...etc)
d 40 mm
H 54 mm
L 190 mm
A 54 mm
J 146 mm
N 17 mm
N1 21 mm
H1 20 mm
H2 106 mm
L1 mm
B1 50 mm
Bolt size M14
Basic load ratings : Cr 34.1 kN
Basic load ratings : C0r 21.3 kN
Fatigue load limit : Cu 0.968 kN
factor : f0 14.0
Nipple size 1/4-28UNF
